Morphological Operation – GUI Matlab


Operasi morfologi citra merupakan suatu proses yang bertujuan untuk mengubah bentuk objek pada citra asli. Proses tersebut dapat dilakukan pada citra grayscale maupun citra biner.

Jenis-jenis operasi morfologi di antaranya adalah dilasi, erosi, closing, dan opening. Secara berurutan, persamaan yang digunakan untuk masing-masing operasi yaitu:


di mana A adalah citra asli dan B adalah structuring element. Structuring element merupakan matriks operator yang dapat berbentuk garis, persegi, disk, diamond, dll.

Contoh pemrograman GUI Matlab untuk operasi morfologi adalah sebagai berikut:

1. Membaca dan menampilkan citra asli

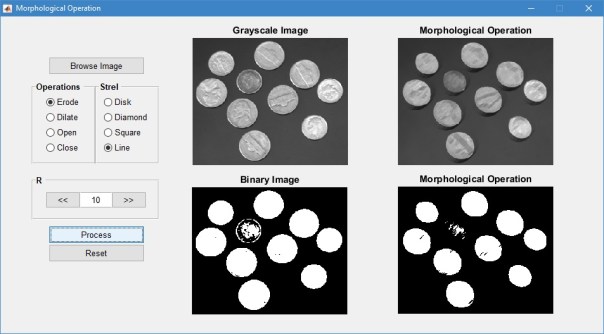

2. Operasi erosi dengan structure element ‘line’ dan R = 10

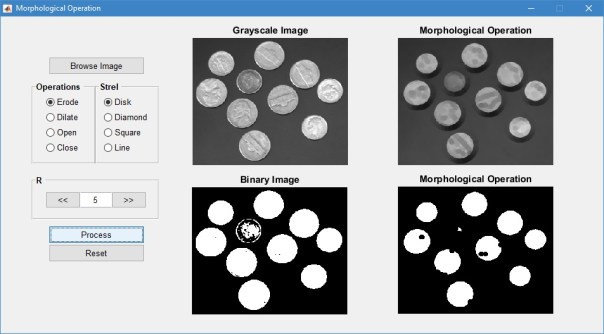

3. Operasi erosi dengan structure element ‘disk’ dan R = 5

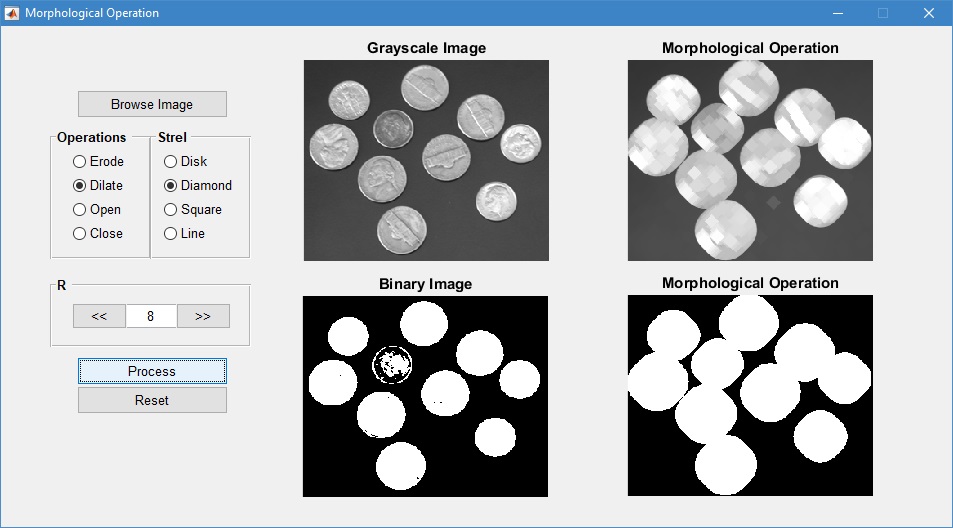

4. Operasi dilasi dengan structure element ‘diamond’ dan R = 8

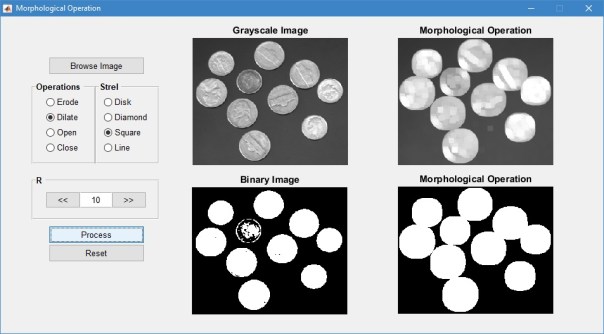

5. Operasi dilasi dengan structure element ‘square’ dan R = 10

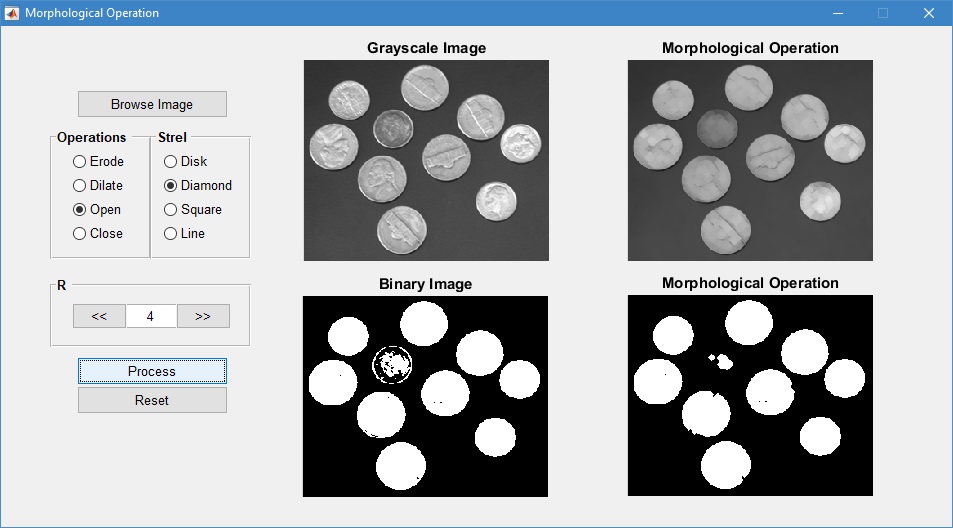

6. Operasi opening dengan structure element ‘diamond’ dan R = 4

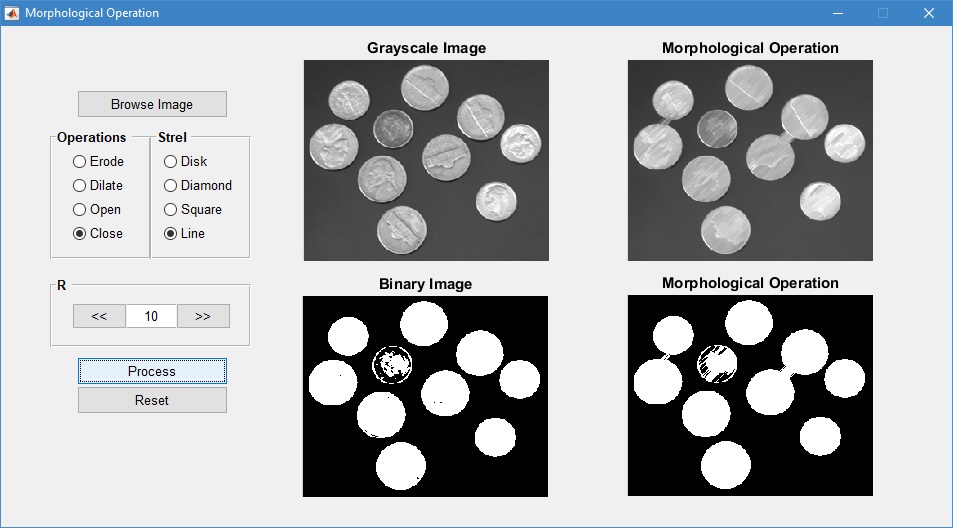

7. Operasi closing dengan structure element ‘line’ dan R = 10

Source code dan citra untuk proses operasi morfologi dapat diunduh pada laman berikut ini: Source Code

Sedangkan tampilan source codenya adalah:

function varargout = Morphological_Operation(varargin)
% MORPHOLOGICAL_OPERATION MATLAB code for Morphological_Operation.fig
%      MORPHOLOGICAL_OPERATION, by itself, creates a new MORPHOLOGICAL_OPERATION or raises the existing
%      singleton*.
%
%      H = MORPHOLOGICAL_OPERATION returns the handle to a new MORPHOLOGICAL_OPERATION or the handle to
%      the existing singleton*.
%
%      MORPHOLOGICAL_OPERATION('CALLBACK',hObject,eventData,handles,...) calls the local
%      function named CALLBACK in MORPHOLOGICAL_OPERATION.M with the given input arguments.
%
%      MORPHOLOGICAL_OPERATION('Property','Value',...) creates a new MORPHOLOGICAL_OPERATION or raises the
%      existing singleton*.  Starting from the left, property value pairs are
%      applied to the GUI before Morphological_Operation_OpeningFcn gets called.  An
%      unrecognized property name or invalid value makes property application
%      stop.  All inputs are passed to Morphological_Operation_OpeningFcn via varargin.
%
%      *See GUI Options on GUIDE's Tools menu.  Choose "GUI allows only one
%      instance to run (singleton)".
%
% See also: GUIDE, GUIDATA, GUIHANDLES

% Edit the above text to modify the response to help Morphological_Operation

% Last Modified by GUIDE v2.5 04-Jan-2017 01:46:44

% Begin initialization code - DO NOT EDIT
gui_Singleton = 1;
gui_State = struct('gui_Name',       mfilename, ...
    'gui_Singleton',  gui_Singleton, ...
    'gui_OpeningFcn', @Morphological_Operation_OpeningFcn, ...
    'gui_OutputFcn',  @Morphological_Operation_OutputFcn, ...
    'gui_LayoutFcn',  [] , ...
    'gui_Callback',   []);
if nargin && ischar(varargin{1})
    gui_State.gui_Callback = str2func(varargin{1});
end

if nargout
    [varargout{1:nargout}] = gui_mainfcn(gui_State, varargin{:});
else
    gui_mainfcn(gui_State, varargin{:});
end
% End initialization code - DO NOT EDIT


% --- Executes just before Morphological_Operation is made visible.
function Morphological_Operation_OpeningFcn(hObject, eventdata, handles, varargin)
% This function has no output args, see OutputFcn.
% hObject    handle to figure
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
% varargin   command line arguments to Morphological_Operation (see VARARGIN)

% Choose default command line output for Morphological_Operation
handles.output = hObject;

% Update handles structure
guidata(hObject, handles);
movegui(hObject,'center');
clc;clear;

% UIWAIT makes Morphological_Operation wait for user response (see UIRESUME)
% uiwait(handles.figure1);


% --- Outputs from this function are returned to the command line.
function varargout = Morphological_Operation_OutputFcn(hObject, eventdata, handles)
% varargout  cell array for returning output args (see VARARGOUT);
% hObject    handle to figure
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Get default command line output from handles structure
varargout{1} = handles.output;


% --- Executes on button press in radiobutton1.
function radiobutton1_Callback(hObject, eventdata, handles)
% hObject    handle to radiobutton1 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Hint: get(hObject,'Value') returns toggle state of radiobutton1
set(handles.radiobutton1,'Value',1)
set(handles.radiobutton2,'Value',0)
set(handles.radiobutton3,'Value',0)
set(handles.radiobutton4,'Value',0)


% --- Executes on button press in radiobutton2.
function radiobutton2_Callback(hObject, eventdata, handles)
% hObject    handle to radiobutton2 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Hint: get(hObject,'Value') returns toggle state of radiobutton2
set(handles.radiobutton1,'Value',0)
set(handles.radiobutton2,'Value',1)
set(handles.radiobutton3,'Value',0)
set(handles.radiobutton4,'Value',0)

% --- Executes on button press in radiobutton3.
function radiobutton3_Callback(hObject, eventdata, handles)
% hObject    handle to radiobutton3 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Hint: get(hObject,'Value') returns toggle state of radiobutton3
set(handles.radiobutton1,'Value',0)
set(handles.radiobutton2,'Value',0)
set(handles.radiobutton3,'Value',1)
set(handles.radiobutton4,'Value',0)

% --- Executes on button press in radiobutton4.
function radiobutton4_Callback(hObject, eventdata, handles)
% hObject    handle to radiobutton4 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Hint: get(hObject,'Value') returns toggle state of radiobutton4
set(handles.radiobutton1,'Value',0)
set(handles.radiobutton2,'Value',0)
set(handles.radiobutton3,'Value',0)
set(handles.radiobutton4,'Value',1)

% --- Executes on button press in radiobutton5.
function radiobutton5_Callback(hObject, eventdata, handles)
% hObject    handle to radiobutton5 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Hint: get(hObject,'Value') returns toggle state of radiobutton5
set(handles.radiobutton5,'Value',1)
set(handles.radiobutton6,'Value',0)
set(handles.radiobutton7,'Value',0)
set(handles.radiobutton8,'Value',0)

% --- Executes on button press in radiobutton6.
function radiobutton6_Callback(hObject, eventdata, handles)
% hObject    handle to radiobutton6 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Hint: get(hObject,'Value') returns toggle state of radiobutton6
set(handles.radiobutton5,'Value',0)
set(handles.radiobutton6,'Value',1)
set(handles.radiobutton7,'Value',0)
set(handles.radiobutton8,'Value',0)

% --- Executes on button press in radiobutton7.
function radiobutton7_Callback(hObject, eventdata, handles)
% hObject    handle to radiobutton7 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Hint: get(hObject,'Value') returns toggle state of radiobutton7
set(handles.radiobutton5,'Value',0)
set(handles.radiobutton6,'Value',0)
set(handles.radiobutton7,'Value',1)
set(handles.radiobutton8,'Value',0)

% --- Executes on button press in radiobutton8.
function radiobutton8_Callback(hObject, eventdata, handles)
% hObject    handle to radiobutton8 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Hint: get(hObject,'Value') returns toggle state of radiobutton8
set(handles.radiobutton5,'Value',0)
set(handles.radiobutton6,'Value',0)
set(handles.radiobutton7,'Value',0)
set(handles.radiobutton8,'Value',1)

% --- Executes on button press in pushbutton1.
function pushbutton1_Callback(hObject, eventdata, handles)
% hObject    handle to pushbutton1 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
[filename,pathname] = uigetfile({'*.*'});

if ~isequal(filename,0)
    Info = imfinfo(fullfile(pathname,filename));
    if Info.BitDepth == 1
        msgbox('Citra masukan harus citra RGB atau Grayscale');
        return
    elseif Info.BitDepth == 8
        Img_Gray = imread(fullfile(pathname,filename));
        axes(handles.axes1)
        cla('reset')
        imshow(Img_Gray)
        title('Grayscale Image')
        Img_bw = im2bw(Img_Gray,graythresh(Img_Gray));
        axes(handles.axes2)
        cla('reset')
        imshow(Img_bw)
        title('Binary Image')
    else
        Img_Gray = rgb2gray(imread(fullfile(pathname,filename)));
        axes(handles.axes1)
        cla('reset')
        imshow(Img_Gray)
        title('Grayscale Image')
        Img_bw = im2bw(Img_Gray,graythresh(Img_Gray));
        axes(handles.axes2)
        cla('reset')
        imshow(Img_bw)
        title('Binary Image')
    end
else
    return
end

handles.Img_Gray = Img_Gray;
handles.Img_Gray2 = Img_Gray;
handles.Img_bw = Img_bw;
handles.Img_bw2 = Img_bw;
guidata(hObject,handles);

set(handles.pushbutton2,'Enable','on')

% --- Executes on button press in pushbutton2.
function pushbutton2_Callback(hObject, eventdata, handles)
% hObject    handle to pushbutton2 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
Img_Gray = handles.Img_Gray;
Img_bw = handles.Img_bw;

% Operations
val1 = get(handles.radiobutton1,'Value');
val2 = get(handles.radiobutton2,'Value');
val3 = get(handles.radiobutton3,'Value');
val4 = get(handles.radiobutton4,'Value');

% Structure Element
val5 = get(handles.radiobutton5,'Value');
val6 = get(handles.radiobutton6,'Value');
val7 = get(handles.radiobutton7,'Value');
val8 = get(handles.radiobutton8,'Value');

% R
R = str2double(get(handles.edit1,'String'));

%
if val5 == 1
    se = strel('disk',R);
elseif val6 == 1
    se = strel('diamond',R);
elseif val7 == 1
    se = strel('square',R);
elseif val8 == 1
    se = strel('line',R,45);
end


if val1 == 1
    Morph_Gray = imerode(Img_Gray,se);
    Morph_bw = imerode(Img_bw,se);
elseif val2 == 1
    Morph_Gray = imdilate(Img_Gray,se);
    Morph_bw = imdilate(Img_bw,se);
elseif val3 == 1
    Morph_Gray = imopen(Img_Gray,se);
    Morph_bw = imopen(Img_bw,se);
elseif val4 == 1
    Morph_Gray = imclose(Img_Gray,se);
    Morph_bw = imclose(Img_bw,se);
end

axes(handles.axes1)
cla('reset')
imshow(Img_Gray)
title('Grayscale Image')
axes(handles.axes2)
cla('reset')
imshow(Img_bw)
title('Binary Image')
axes(handles.axes3)
cla('reset')
imshow(Morph_Gray)
title('Morphological Operation')
axes(handles.axes4)
cla('reset')
imshow(Morph_bw)
title('Morphological Operation')

function edit1_Callback(hObject, eventdata, handles)
% hObject    handle to edit1 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Hints: get(hObject,'String') returns contents of edit1 as text
%        str2double(get(hObject,'String')) returns contents of edit1 as a double


% --- Executes during object creation, after setting all properties.
function edit1_CreateFcn(hObject, eventdata, handles)
% hObject    handle to edit1 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    empty - handles not created until after all CreateFcns called

% Hint: edit controls usually have a white background on Windows.
%       See ISPC and COMPUTER.
if ispc && isequal(get(hObject,'BackgroundColor'), get(0,'defaultUicontrolBackgroundColor'))
    set(hObject,'BackgroundColor','white');
end


% --- Executes on button press in pushbutton3.
function pushbutton3_Callback(hObject, eventdata, handles)
% hObject    handle to pushbutton3 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
axes(handles.axes1)
cla('reset')
set(gca,'XTick',[])
set(gca,'YTick',[])

axes(handles.axes2)
cla('reset')
set(gca,'XTick',[])
set(gca,'YTick',[])

axes(handles.axes3)
cla('reset')
set(gca,'XTick',[])
set(gca,'YTick',[])

axes(handles.axes4)
cla('reset')
set(gca,'XTick',[])
set(gca,'YTick',[])

set(handles.pushbutton2,'Enable','off')
set(handles.edit1,'String',1)
set(handles.radiobutton1,'Value',1)
set(handles.radiobutton2,'Value',0)
set(handles.radiobutton3,'Value',0)
set(handles.radiobutton4,'Value',0)
set(handles.radiobutton5,'Value',1)
set(handles.radiobutton6,'Value',0)
set(handles.radiobutton7,'Value',0)
set(handles.radiobutton8,'Value',0)

% --- Executes on button press in pushbutton4.
function pushbutton4_Callback(hObject, eventdata, handles)
% hObject    handle to pushbutton4 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
val = str2double(get(handles.edit1,'String'))+1;
if val > 10
    val = 10;
end
set(handles.edit1,'String',val)

% --- Executes on button press in pushbutton5.
function pushbutton5_Callback(hObject, eventdata, handles)
% hObject    handle to pushbutton5 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
val = str2double(get(handles.edit1,'String'))-1;
if val < 1
    val = 1;
end
set(handles.edit1,'String',val)

Posted on August 11, 2015, in Pengenalan Pola, Pengolahan Citra and tagged , , , , , , , , , , , , , , , , , , , , , , , , , , , , . Bookmark the permalink. 8 Comments.

  1. halo mas, mengenai morfologi ekstraksi ciri di citra bw apakah ada referensi materi dan matlab codenya? terimakasih sebelumnya

  2. mantap banget mas…mirip dengan tugas akhir saya, bisa dijadikan referensi

  3. Halo mas Adi, materinya sangat membantu, mw tanya mas, klw operasi strel diatas kan manual menambah dan mengurangi R nya utk Erosi. Bgmana klw R nya itu dibuat otomatis mas..seperti looping (for), jadi dia akan cari/deteksi otomatis nilai persentasi tertinggi, shg kita ga perlu klik berkali-kali. mohon pencerahannya..terimakasih

  4. Ada contoh yang sesuai mungkin mas? penulisan code nya

Leave a Reply

Fill in your details below or click an icon to log in:

WordPress.com Logo

You are commenting using your WordPress.com account. Log Out /  Change )

Google+ photo

You are commenting using your Google+ account. Log Out /  Change )

Twitter picture

You are commenting using your Twitter account. Log Out /  Change )

Facebook photo

You are commenting using your Facebook account. Log Out /  Change )

w

Connecting to %s

%d bloggers like this:
