Dalam pengolahan citra, terkadang kita hanya menginginkan pengolahan hanya pada daerah/bagian tertentu dari citra. Daerah yang kita inginkan tersebut disebut dengan Region of Interest (ROI). Proses untuk mendapatkan ROI salah satunya adalah dengan cara melakukan cropping pada suatu citra.

Berikut ini merupakan contoh aplikasi pemrograman GUI Matlab untuk melakukan cropping pada suatu citra:
1. Citra Asli (Original Image)

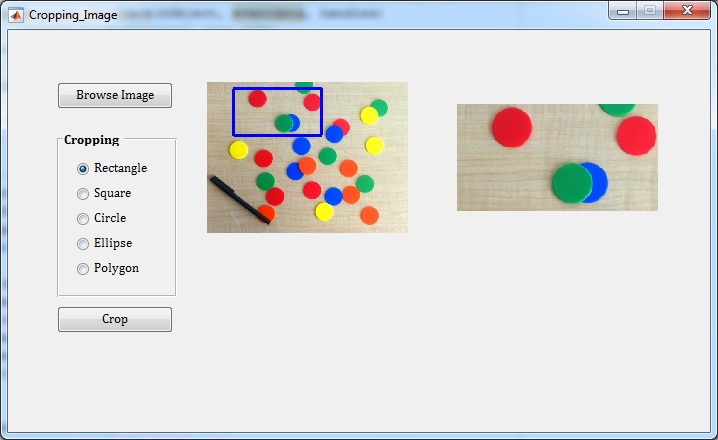

2. Proses cropping menggunakan Rectangle Crop

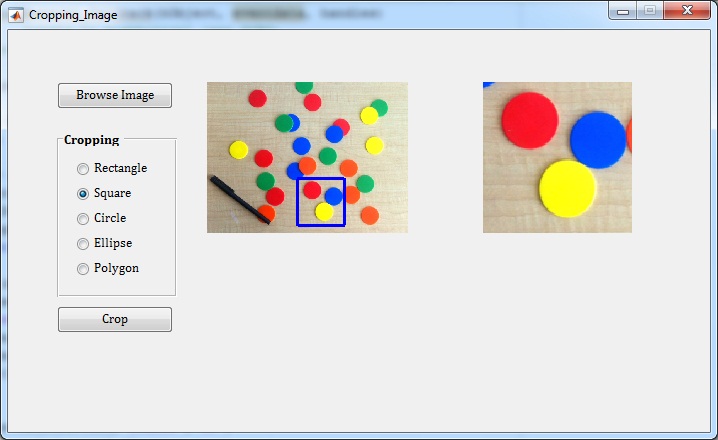

3. Proses cropping menggunakan Square Crop

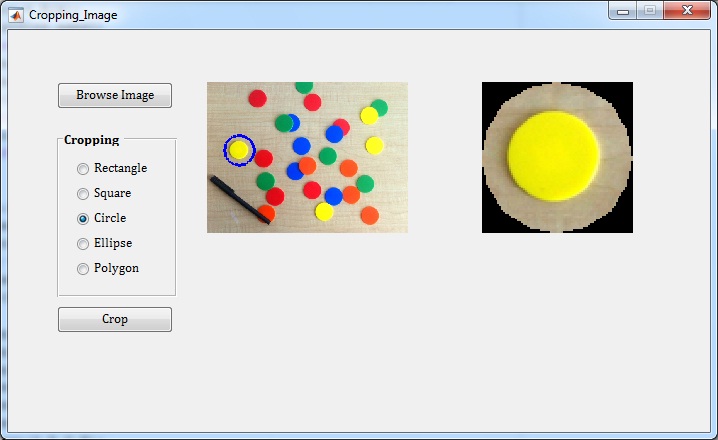

4. Proses cropping menggunakan Circle Crop

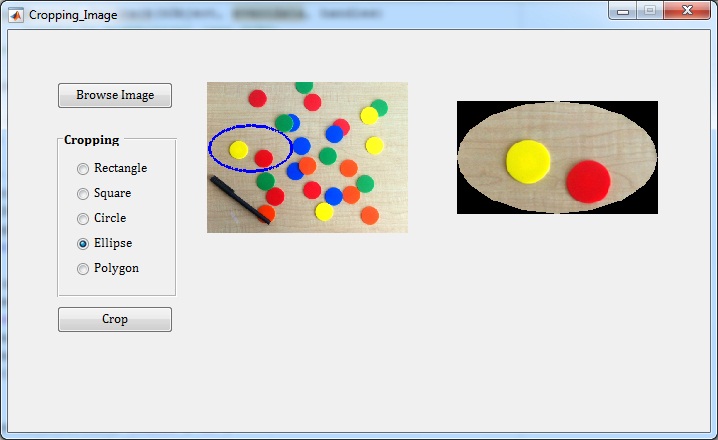

5. Proses cropping menggunakan Ellipse Crop

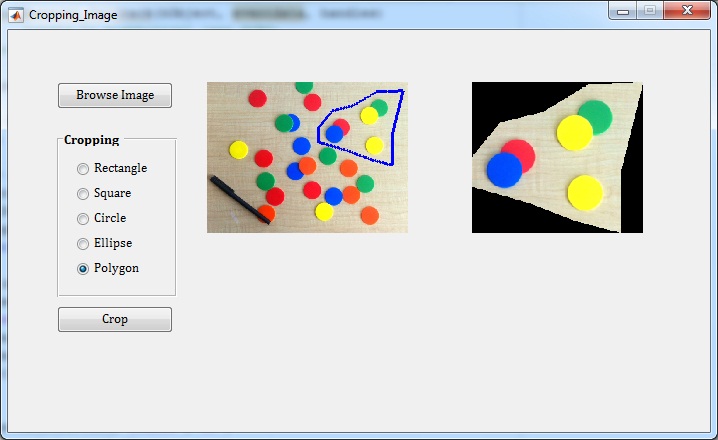

6. Proses cropping menggunakan Polygon Crop

File source code lengkap beserta citra untuk proses cropping pada materi di atas dapat diperoleh melalui halaman berikut ini: Source Code

Sedangkan tampilan source codenya adalah:

function varargout = Cropping_Image(varargin)
% CROPPING_IMAGE MATLAB code for Cropping_Image.fig
% CROPPING_IMAGE, by itself, creates a new CROPPING_IMAGE or raises the existing
% singleton*.
%
% H = CROPPING_IMAGE returns the handle to a new CROPPING_IMAGE or the handle to
% the existing singleton*.
%
% CROPPING_IMAGE('CALLBACK',hObject,eventData,handles,...) calls the local
% function named CALLBACK in CROPPING_IMAGE.M with the given input arguments.
%
% CROPPING_IMAGE('Property','Value',...) creates a new CROPPING_IMAGE or raises the
% existing singleton*. Starting from the left, property value pairs are
% applied to the GUI before Cropping_Image_OpeningFcn gets called. An
% unrecognized property name or invalid value makes property application
% stop. All inputs are passed to Cropping_Image_OpeningFcn via varargin.
%
% *See GUI Options on GUIDE's Tools menu. Choose "GUI allows only one
% instance to run (singleton)".
%
% See also: GUIDE, GUIDATA, GUIHANDLES

% Edit the above text to modify the response to help Cropping_Image

% Last Modified by GUIDE v2.5 23-Aug-2015 21:39:16

% Begin initialization code - DO NOT EDIT
gui_Singleton = 1;
gui_State = struct('gui_Name', mfilename, ...
    'gui_Singleton', gui_Singleton, ...
    'gui_OpeningFcn', @Cropping_Image_OpeningFcn, ...
    'gui_OutputFcn', @Cropping_Image_OutputFcn, ...
    'gui_LayoutFcn', [] , ...
    'gui_Callback', []);
if nargin && ischar(varargin{1})
    gui_State.gui_Callback = str2func(varargin{1});
end

if nargout
    [varargout{1:nargout}] = gui_mainfcn(gui_State, varargin{:});
else
    gui_mainfcn(gui_State, varargin{:});
end
% End initialization code - DO NOT EDIT


% --- Executes just before Cropping_Image is made visible.
function Cropping_Image_OpeningFcn(hObject, eventdata, handles, varargin)
% This function has no output args, see OutputFcn.
% hObject handle to figure
% eventdata reserved - to be defined in a future version of MATLAB
% handles structure with handles and user data (see GUIDATA)
% varargin command line arguments to Cropping_Image (see VARARGIN)

% Choose default command line output for Cropping_Image
handles.output = hObject;

% Update handles structure
guidata(hObject, handles);
movegui(hObject,'center');
clc;clear;

% UIWAIT makes Cropping_Image wait for user response (see UIRESUME)
% uiwait(handles.figure1);


% --- Outputs from this function are returned to the command line.
function varargout = Cropping_Image_OutputFcn(hObject, eventdata, handles)
% varargout cell array for returning output args (see VARARGOUT);
% hObject handle to figure
% eventdata reserved - to be defined in a future version of MATLAB
% handles structure with handles and user data (see GUIDATA)

% Get default command line output from handles structure
varargout{1} = handles.output;


% --- Executes on button press in pushbutton1.
function pushbutton1_Callback(hObject, eventdata, handles)
% hObject handle to pushbutton1 (see GCBO)
% eventdata reserved - to be defined in a future version of MATLAB
% handles structure with handles and user data (see GUIDATA)
axes(handles.axes1)
cla reset
set(gca,'XTick',[])
set(gca,'YTick',[])

axes(handles.axes2)
cla reset
set(gca,'XTick',[])
set(gca,'YTick',[])

[filename,pathname] = uigetfile({'*.*'});

if isequal(filename,0)
    return
else
    Info = imfinfo(fullfile(pathname,filename));
    BitDepth = Info.BitDepth;
    if BitDepth == 1
        msgbox('Please insert RGB image or Grayscale image')
        return
    end
    Img = imread(fullfile(pathname,filename));
    axes(handles.axes1)
    cla reset
    set(gca,'XTick',[])
    set(gca,'YTick',[])
    imshow(Img)
end

set(handles.radiobutton1,'Enable','on')
set(handles.radiobutton2,'Enable','on')
set(handles.radiobutton3,'Enable','on')
set(handles.radiobutton4,'Enable','on')
set(handles.radiobutton5,'Enable','on')
set(handles.pushbutton2,'Enable','on')

handles.Img = Img;
handles.BitDepth = BitDepth;
guidata(hObject, handles)

% --- Executes on button press in radiobutton1.
function radiobutton1_Callback(hObject, eventdata, handles)
% hObject handle to radiobutton1 (see GCBO)
% eventdata reserved - to be defined in a future version of MATLAB
% handles structure with handles and user data (see GUIDATA)

% Hint: get(hObject,'Value') returns toggle state of radiobutton1
set(handles.radiobutton1,'Value',1)
set(handles.radiobutton2,'Value',0)
set(handles.radiobutton3,'Value',0)
set(handles.radiobutton4,'Value',0)
set(handles.radiobutton5,'Value',0)

% --- Executes on button press in radiobutton2.
function radiobutton2_Callback(hObject, eventdata, handles)
% hObject handle to radiobutton2 (see GCBO)
% eventdata reserved - to be defined in a future version of MATLAB
% handles structure with handles and user data (see GUIDATA)

% Hint: get(hObject,'Value') returns toggle state of radiobutton2
set(handles.radiobutton1,'Value',0)
set(handles.radiobutton2,'Value',1)
set(handles.radiobutton3,'Value',0)
set(handles.radiobutton4,'Value',0)
set(handles.radiobutton5,'Value',0)

% --- Executes on button press in radiobutton3.
function radiobutton3_Callback(hObject, eventdata, handles)
% hObject handle to radiobutton3 (see GCBO)
% eventdata reserved - to be defined in a future version of MATLAB
% handles structure with handles and user data (see GUIDATA)

% Hint: get(hObject,'Value') returns toggle state of radiobutton3
set(handles.radiobutton1,'Value',0)
set(handles.radiobutton2,'Value',0)
set(handles.radiobutton3,'Value',1)
set(handles.radiobutton4,'Value',0)
set(handles.radiobutton5,'Value',0)

% --- Executes on button press in radiobutton4.
function radiobutton4_Callback(hObject, eventdata, handles)
% hObject handle to radiobutton4 (see GCBO)
% eventdata reserved - to be defined in a future version of MATLAB
% handles structure with handles and user data (see GUIDATA)

% Hint: get(hObject,'Value') returns toggle state of radiobutton4
set(handles.radiobutton1,'Value',0)
set(handles.radiobutton2,'Value',0)
set(handles.radiobutton3,'Value',0)
set(handles.radiobutton4,'Value',1)
set(handles.radiobutton5,'Value',0)

% --- Executes on button press in radiobutton5.
function radiobutton5_Callback(hObject, eventdata, handles)
% hObject handle to radiobutton5 (see GCBO)
% eventdata reserved - to be defined in a future version of MATLAB
% handles structure with handles and user data (see GUIDATA)

% Hint: get(hObject,'Value') returns toggle state of radiobutton5
set(handles.radiobutton1,'Value',0)
set(handles.radiobutton2,'Value',0)
set(handles.radiobutton3,'Value',0)
set(handles.radiobutton4,'Value',0)
set(handles.radiobutton5,'Value',1)

% --- Executes on button press in pushbutton2.
function pushbutton2_Callback(hObject, eventdata, handles)
% hObject handle to pushbutton2 (see GCBO)
% eventdata reserved - to be defined in a future version of MATLAB
% handles structure with handles and user data (see GUIDATA)
Img = handles.Img;
[m,n,~] = size(Img);

val1 = get(handles.radiobutton1,'Value');
val2 = get(handles.radiobutton2,'Value');
val3 = get(handles.radiobutton3,'Value');
val4 = get(handles.radiobutton4,'Value');
val5 = get(handles.radiobutton5,'Value');

axes(handles.axes2)
cla reset
set(gca,'XTick',[])
set(gca,'YTick',[])

axes(handles.axes1)
cla reset
set(gca,'XTick',[])
set(gca,'YTick',[])
imshow(Img);

if val1 == 1
    h = imrect(gca,[n/2 m/2 0.2*n 0.2*m]);
    wait(h);
    mask = createMask(h);
elseif val2 == 1
    h = imrect(gca,[n/2 m/2 0.2*m 0.2*m]);
    setFixedAspectRatioMode(h,'true')
    wait(h);
    mask = createMask(h);
elseif val3 == 1
    h = imellipse(gca,[n/2 m/2 0.2*m 0.2*m]);
    setFixedAspectRatioMode(h,'true')
    wait(h);
    mask = createMask(h);
elseif val4 == 1
    h = imellipse(gca,[n/2 m/2 0.2*n 0.2*m]);
    wait(h);
    mask = createMask(h);
elseif val5 == 1
    h = impoly(gca);
    wait(h);
    mask = createMask(h);
end

[B,~] = bwboundaries(mask,'noholes');
for k = 1:length(B)
    boundary = B{k};
    axes(handles.axes1)
    cla reset
    set(gca,'XTick',[])
    set(gca,'YTick',[])
    imshow(Img);
    hold on
    plot(boundary(:,2), boundary(:,1), 'b', 'LineWidth', 2)
    hold off
end

if handles.BitDepth == 8
    Img(~mask) = 0;
    [row,col] = find(mask==1);
    h_Gray = imcrop(Img,[min(col) min(row) max(col)-min(col) max(row)-min(row)]);
    axes(handles.axes2)
    imshow(h_Gray);
else
    R = Img(:,:,1);
    G = Img(:,:,2);
    B = Img(:,:,3);
    R(~mask) = 0;
    G(~mask) = 0;
    B(~mask) = 0;
    RGB = cat(3,R,G,B);
    [row,col] = find(mask==1);
    h_RGB = imcrop(RGB,[min(col) min(row) max(col)-min(col) max(row)-min(row)]);
    axes(handles.axes2)
    imshow(h_RGB);
end
