Dalam pengolahan citra digital terkadang diperlukan transformasi geometri untuk merepresentasikan citra dalam arah yang lain. Transformasi geometri di antaranya meliputi operasi flip dan rotasi. Berikut ini merupakan contoh aplikasi pemrograman GUI Matlab mengenai Geometric Image Transformations:

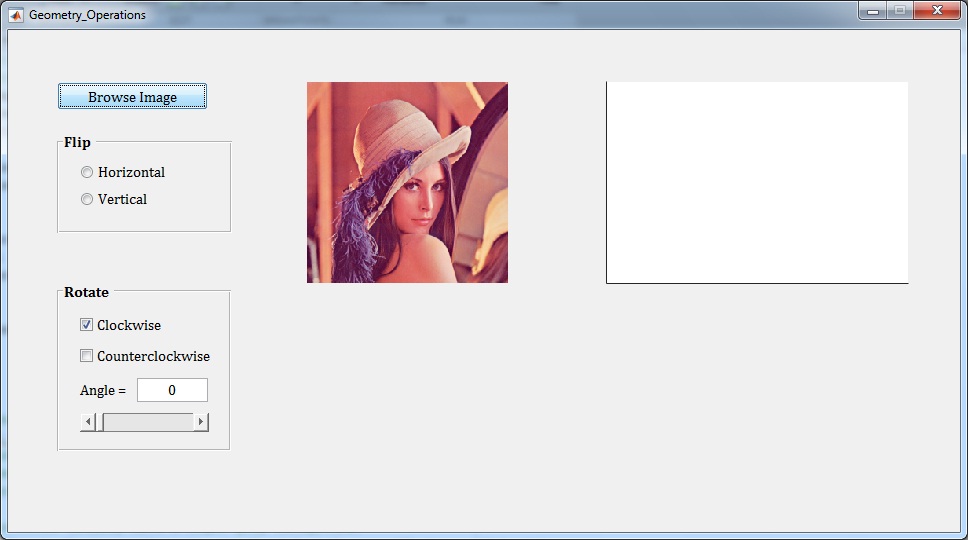

1. Citra Asli (Original Image)

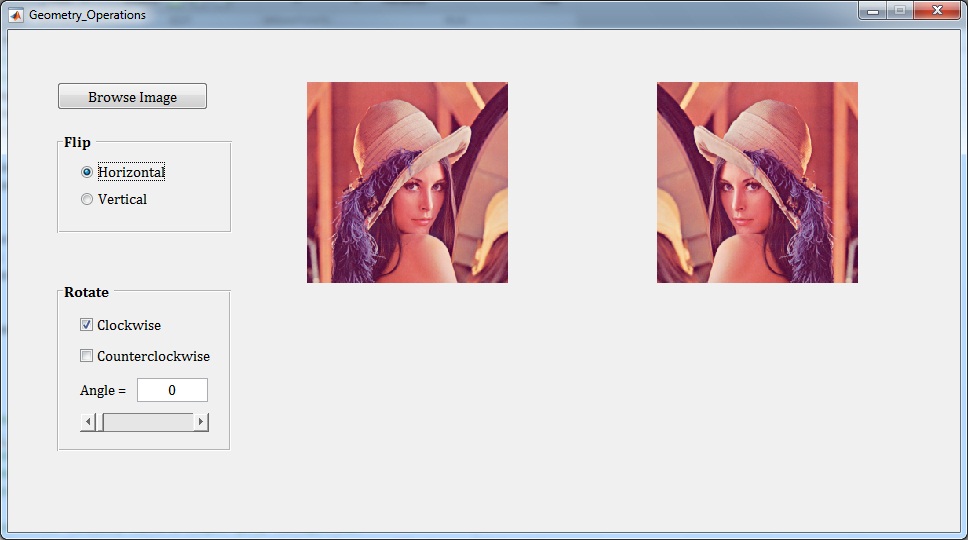

2. Operasi Flip Horizontal

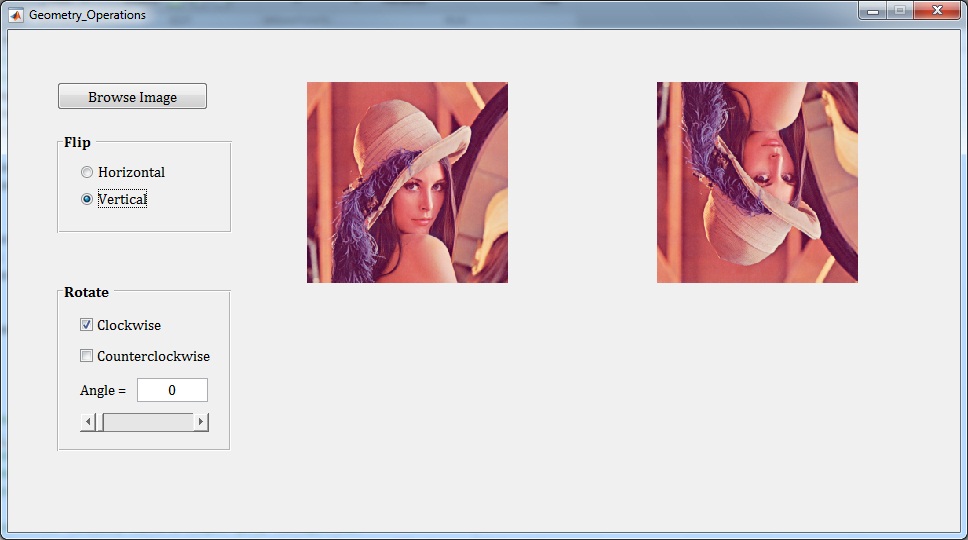

3. Operasi Flip Vertical

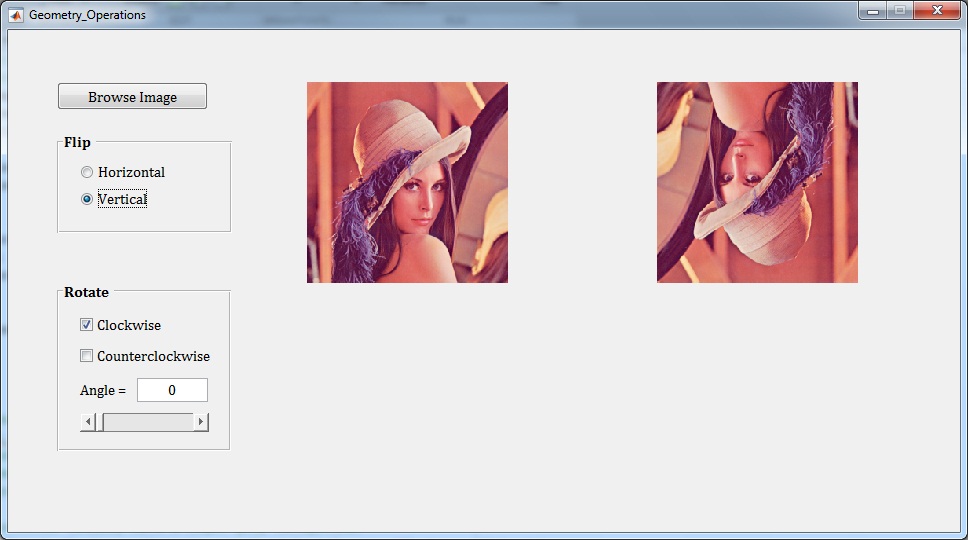

4. Operasi Flip Horizontal dilanjutkan Flip Vertical

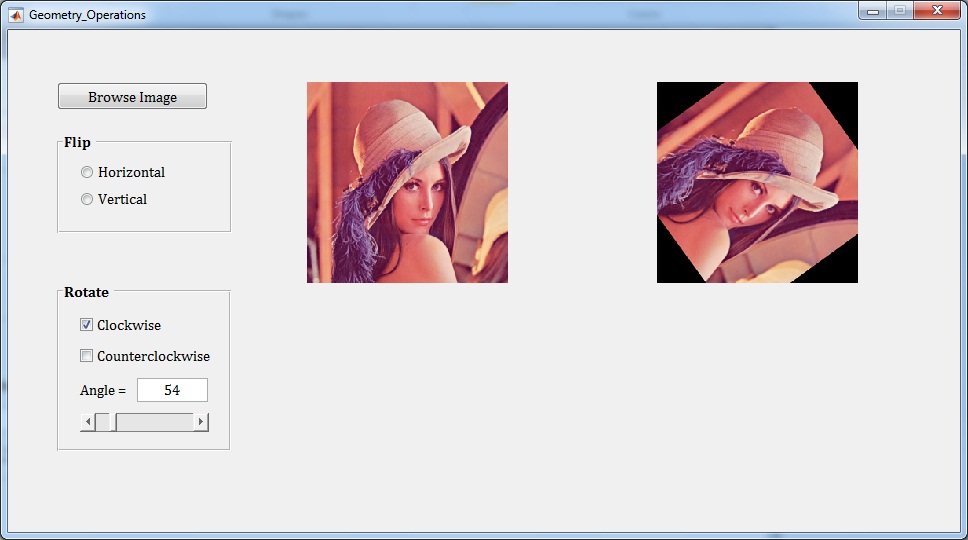

5. Operasi rotasi searah jarum jam dengan sudut 54°

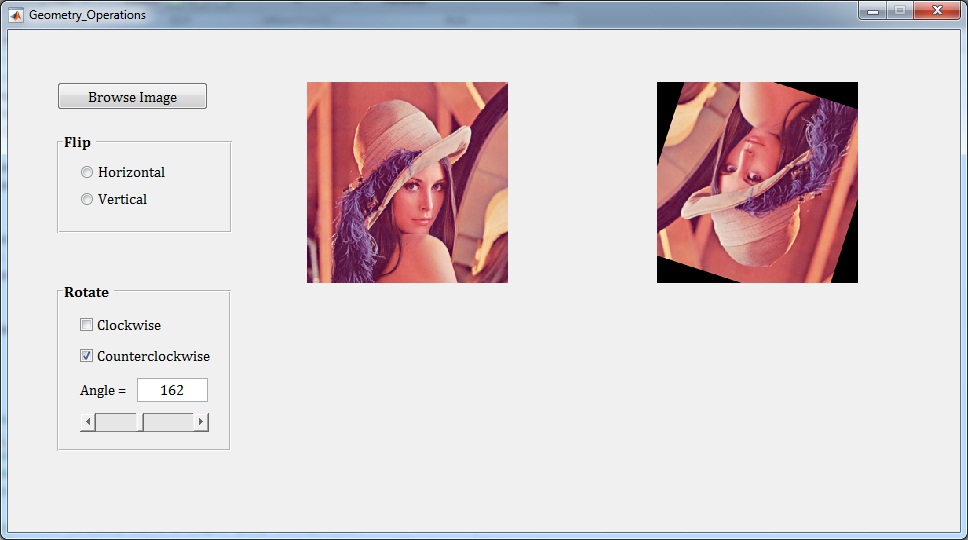

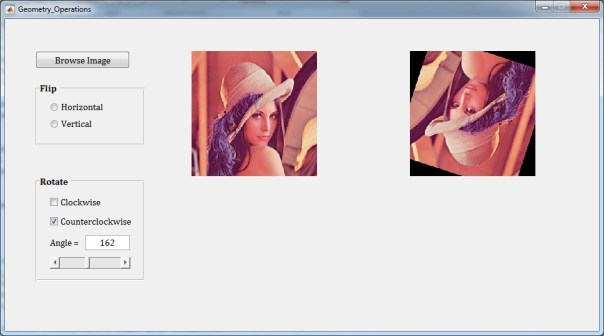

6. Operasi rotasi berlawanan arah jarum jam dengan sudut 162°

File source code lengkap beserta citra geometric image transformation dapat diperoleh melalui halaman berikut ini: Source Code

Sedangkan tampilan source codenya adalah:

function varargout = Geometry_Operations(varargin)
% GEOMETRY_OPERATIONS MATLAB code for Geometry_Operations.fig
%      GEOMETRY_OPERATIONS, by itself, creates a new GEOMETRY_OPERATIONS or raises the existing
%      singleton*.
%
%      H = GEOMETRY_OPERATIONS returns the handle to a new GEOMETRY_OPERATIONS or the handle to
%      the existing singleton*.
%
%      GEOMETRY_OPERATIONS('CALLBACK',hObject,eventData,handles,...) calls the local
%      function named CALLBACK in GEOMETRY_OPERATIONS.M with the given input arguments.
%
%      GEOMETRY_OPERATIONS('Property','Value',...) creates a new GEOMETRY_OPERATIONS or raises the
%      existing singleton*.  Starting from the left, property value pairs are
%      applied to the GUI before Geometry_Operations_OpeningFcn gets called.  An
%      unrecognized property name or invalid value makes property application
%      stop.  All inputs are passed to Geometry_Operations_OpeningFcn via varargin.
%
%      *See GUI Options on GUIDE's Tools menu.  Choose "GUI allows only one
%      instance to run (singleton)".
%
% See also: GUIDE, GUIDATA, GUIHANDLES

% Edit the above text to modify the response to help Geometry_Operations

% Last Modified by GUIDE v2.5 02-Sep-2015 15:36:15

% Begin initialization code - DO NOT EDIT
gui_Singleton = 1;
gui_State = struct('gui_Name',       mfilename, ...
                   'gui_Singleton',  gui_Singleton, ...
                   'gui_OpeningFcn', @Geometry_Operations_OpeningFcn, ...
                   'gui_OutputFcn',  @Geometry_Operations_OutputFcn, ...
                   'gui_LayoutFcn',  [] , ...
                   'gui_Callback',   []);
if nargin && ischar(varargin{1})
    gui_State.gui_Callback = str2func(varargin{1});
end

if nargout
    [varargout{1:nargout}] = gui_mainfcn(gui_State, varargin{:});
else
    gui_mainfcn(gui_State, varargin{:});
end
% End initialization code - DO NOT EDIT


% --- Executes just before Geometry_Operations is made visible.
function Geometry_Operations_OpeningFcn(hObject, eventdata, handles, varargin)
% This function has no output args, see OutputFcn.
% hObject    handle to figure
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
% varargin   command line arguments to Geometry_Operations (see VARARGIN)

% Choose default command line output for Geometry_Operations
handles.output = hObject;

% Update handles structure
guidata(hObject, handles);
movegui(hObject,'center');
clc;clear;

% UIWAIT makes Geometry_Operations wait for user response (see UIRESUME)
% uiwait(handles.figure1);


% --- Outputs from this function are returned to the command line.
function varargout = Geometry_Operations_OutputFcn(hObject, eventdata, handles)
% varargout  cell array for returning output args (see VARARGOUT);
% hObject    handle to figure
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Get default command line output from handles structure
varargout{1} = handles.output;


% --- Executes on button press in pushbutton1.
function pushbutton1_Callback(hObject, eventdata, handles)
% hObject    handle to pushbutton1 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
[filename,pathname] = uigetfile({'*.*'});

if isequal(filename,0)
    return
else
    Img = imread(fullfile(pathname,filename));
    axes(handles.axes1)
    cla('reset')
    imshow(Img)
end

handles.Img = Img;
guidata(hObject, handles)

% --- Executes on button press in radiobutton1.
function radiobutton1_Callback(hObject, eventdata, handles)
% hObject    handle to radiobutton1 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Hint: get(hObject,'Value') returns toggle state of radiobutton1
set(handles.radiobutton1,'Value',1)
set(handles.radiobutton2,'Value',0)

Img = handles.Img;
Flip_Hor = fliplr(Img);

axes(handles.axes2)
cla('reset')
imshow(Flip_Hor)

handles.Img = Flip_Hor;
guidata(hObject, handles)

% --- Executes on button press in radiobutton2.
function radiobutton2_Callback(hObject, eventdata, handles)
% hObject    handle to radiobutton2 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Hint: get(hObject,'Value') returns toggle state of radiobutton2
set(handles.radiobutton1,'Value',0)
set(handles.radiobutton2,'Value',1)

Img = handles.Img;
Flip_Ver = flipud(Img);

axes(handles.axes2)
cla('reset')
imshow(Flip_Ver)

handles.Img = Flip_Ver;
guidata(hObject, handles)


% --- Executes on button press in checkbox1.
function checkbox1_Callback(hObject, eventdata, handles)
% hObject    handle to checkbox1 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Hint: get(hObject,'Value') returns toggle state of checkbox1
set(handles.radiobutton1,'Value',0)
set(handles.radiobutton2,'Value',0)
set(handles.checkbox1,'Value',1)
set(handles.checkbox2,'Value',0)

% --- Executes on button press in checkbox2.
function checkbox2_Callback(hObject, eventdata, handles)
% hObject    handle to checkbox2 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Hint: get(hObject,'Value') returns toggle state of checkbox2
set(handles.radiobutton1,'Value',0)
set(handles.radiobutton2,'Value',0)
set(handles.checkbox1,'Value',0)
set(handles.checkbox2,'Value',1)


function edit1_Callback(hObject, eventdata, handles)
% hObject    handle to edit1 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Hints: get(hObject,'String') returns contents of edit1 as text
%        str2double(get(hObject,'String')) returns contents of edit1 as a double


% --- Executes during object creation, after setting all properties.
function edit1_CreateFcn(hObject, eventdata, handles)
% hObject    handle to edit1 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    empty - handles not created until after all CreateFcns called

% Hint: edit controls usually have a white background on Windows.
%       See ISPC and COMPUTER.
if ispc && isequal(get(hObject,'BackgroundColor'), get(0,'defaultUicontrolBackgroundColor'))
    set(hObject,'BackgroundColor','white');
end


% --- Executes on slider movement.
function slider1_Callback(hObject, eventdata, handles)
% hObject    handle to slider1 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Hints: get(hObject,'Value') returns position of slider
%        get(hObject,'Min') and get(hObject,'Max') to determine range of slider
Img = handles.Img;
angle = get(hObject,'Value');
set(handles.edit1,'String',angle)

val1 = get(handles.checkbox1,'Value');
val2 = get(handles.checkbox2,'Value');

if val1 == 1
    Img = imrotate(Img,-angle,'bicubic','crop');
elseif val2 == 1
    Img = imrotate(Img,angle,'bicubic','crop');
end

axes(handles.axes2)
cla('reset')
imshow(Img);


% --- Executes during object creation, after setting all properties.
function slider1_CreateFcn(hObject, eventdata, handles)
% hObject    handle to slider1 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    empty - handles not created until after all CreateFcns called

% Hint: slider controls usually have a light gray background.
if isequal(get(hObject,'BackgroundColor'), get(0,'defaultUicontrolBackgroundColor'))
    set(hObject,'BackgroundColor',[.9 .9 .9]);
end
