File source code lengkap beserta citra mengenai background subtraction (foreground detection) dapat diperoleh melalui halaman berikut ini: Source Code

Sedangkan tampilan source code nya adalah:

clc; clear; close all;

%Read Background Image
Background = imread('background.jpg');

%Read Current Frame
CurrentFrame = imread('current frame.jpg');

% Display Background and Foreground
subplot(2,2,1);imshow(Background);title('Background');
subplot(2,2,2);imshow(CurrentFrame);title('Current Frame');

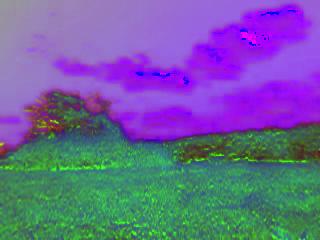

%Convert RGB 2 HSV Color conversion

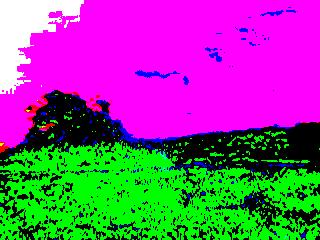

[Background_hsv] = round(rgb2hsv(Background));
[CurrentFrame_hsv] = round(rgb2hsv(CurrentFrame));
Out = bitxor(Background_hsv,CurrentFrame_hsv);

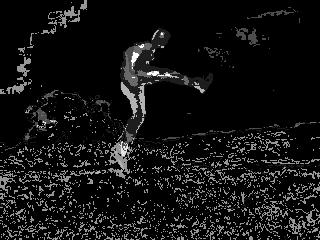

%Convert RGB 2 GRAY
Out=rgb2gray(Out);

%Read Rows and Columns of the Image
[rows, columns] = size(Out);

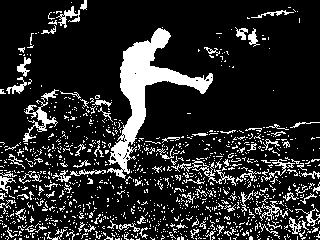

%Convert to Binary Image
BinaryImage = false(rows,columns);
for i=1:rows
    for j=1:columns
        if Out(i,j) >0
            BinaryImage(i,j)=1;
        else
            BinaryImage(i,j)=0;
        end
    end
end

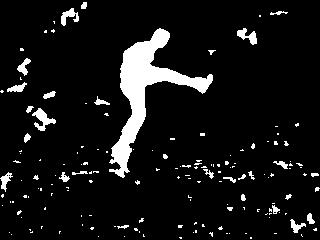

%Apply Median filter to remove Noise
FilteredImage = medfilt2(BinaryImage,[5 5]);

%Boundary Label the Filtered Image
[L, num] = bwlabel(FilteredImage);

STATS = regionprops(L,'all');
cc = [];
removed = 0;

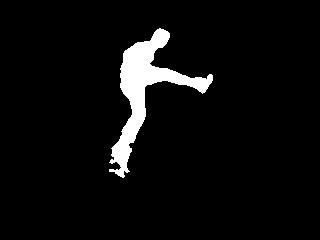

%Remove the noisy regions
for i = 1:num
    dd = STATS(i).Area;
    if (dd < 1000)
        L(L==i)=0;
        removed = removed + 1;
        num = num-1;
    end
end

L = logical(L);
[row,col] = find(L==1);

h_bw = imcrop(CurrentFrame,[min(col) min(row) max(col)-min(col) max(row)-min(row)]);

[a,b] = size(L);

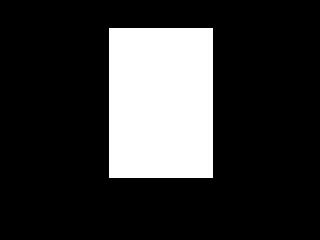

mask = false(a,b);
mask(min(row):max(row),min(col):max(col)) = 1;

mask = bwperim(mask,8);
mask = imdilate(mask,strel('square',5));

R = CurrentFrame(:,:,1);
G = CurrentFrame(:,:,2);
B = CurrentFrame(:,:,3);

R(mask) = 255;
G(mask) = 0;
B(mask) = 0;

RGB = cat(3,R,G,B);

%Display Result
subplot(2,2,3);imshow(L);title('Detected Foreground (binary)');

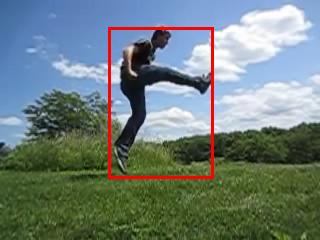

subplot(2,2,4);imshow(RGB);title('Detected Foreground (RGB)');
